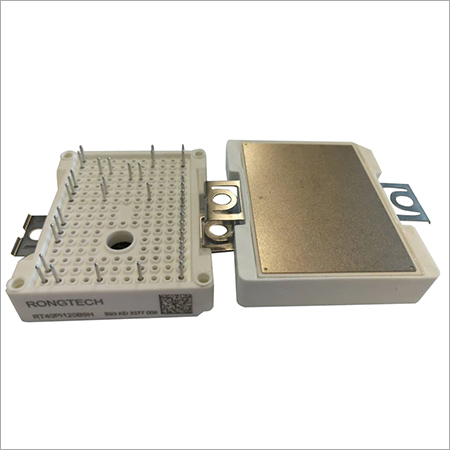

1200V 10A Power Module

1200V 10A Power Module
1200V 10A Power Module
Send Inquiry
Product Code : 01
Product Description

We are manufacturer of 1200V 10A Power Module with all digital meters with moving system with interlocking & limit switches. These power modules are used in various residential as well as commercial places. It also consists of a microprocessor so that it can cut off automatically after it encounter any problem or fault. The 1200V 10A Power Module is available in various size and specifications. Further, they are tested by our quality assurance team to ensure they are free from defects.

Features :

  • Trench + Filed Stop IGBT technology
  • 10μ Short circuit capability
  • VCE (sat) with positive temperature coefficient
  • Low inductance case
  • Fast & soft reverse recovery anti-parallel FWD
  • Isolated copper baseplate using DBC technology


Typical Applications :

  • Inverter for motor drive
  • Air conditions
  • Uninterruptible power supply


Absolute Maximum Ratings Tc=25oC unless otherwise noted

Technical Information : 1200V 10A

IGBT- Inverter

Symbol

Description

Value

Unit

Vces

Collector-Emitter Voltage

1200

V

Vges

Gate-emitter Voltage

+20

V

Ic

Collector Current @ TC = 25oC
@TC = 100oC

25
10

A

Icm

Pulsed Collector Current tp = 1ms

25

A

PD

Maximum Power Dissipation

110

W

Diode-Inverter

Symbol

Description

Value

Unit

VRRM

Repetitive Peak Reverse Voltage

1200

V

IF

Diode Continuous forward Current

10

A

IFM

Diode Maximum forward Current tp = 1ms

20

A

Diode rectifier

Symbol

Description

Value

Unit

VRRM

Repetitive Peak Reverse Voltage

1600

V

IO

Average Output Current, 50Hz/60Hz, sine wave

10

A

IFSM

Surge Forward Current VR=0V, tp=10ms, Tj=45oC

160

A

I2t

I2t-value, VR=0V, t p = 10ms, Tj=45oC

130

A2s

IGBT - brake

Symbol

Description

Value

Unit

Vces

Collector-Emitter Voltage

1200

V

Vges

Gate-emitter Voltage

+20

V

Ic

Collector Current @ TC = 25oC
@TC = 100oC

25
10

A

Icm

Pulsed Collector Current tp = 1ms

25

A

PD

Maximum Power Dissipation

110

W

Diode Brake

Symbol

Description

Value

Unit

VRRM

Repetitive Peak Reverse Voltage

1200

V

IF

Diode Continuous forward Current

10

A

IFM

Diode Maximum forward Current tp = 1ms

20

A

Module

Symbol

Description

Value

Unit

Tjmax

Maximum Junction Temperature (inverter, Brake)

150

oC

Tjop

Operating Junction Temperature

-40 to + 150

oC

TSTG

Storage Temperature Range

-40 to + 125

oC

VISO

Isolation Voltage RMS,f=50Hz, t=1 min

2500

V

F

Mounting Force Per Clamp

20 to 50

N
