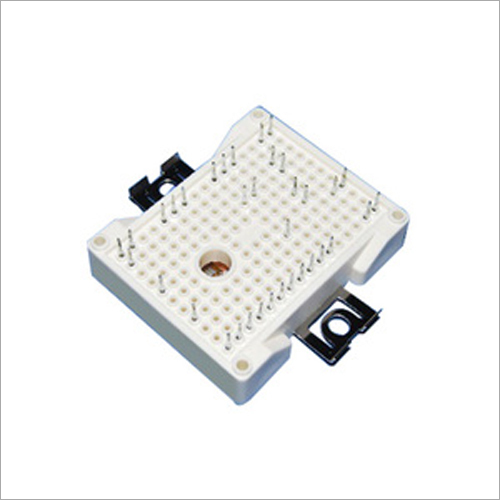

1200V25A PIM Module

1200V25A PIM Module

Product Details:

1.00 - 10.00 USD ($)/Piece
X

1200V25A PIM Module Price And Quantity

  • 1.00 - 10.00 USD ($)/Piece
  • 10000 Piece

1200V25A PIM Module Trade Information

  • 20000 Piece Per Month
  • 7-15 Days
  • Asia Australia Central America North America South America Eastern Europe Western Europe Middle East Africa

Product Description

We are manufacturer of 1200V 25A Power Module and we are provided with complete modular construction. These have standardized verticals & feeder sizes with bolted partition trays & mounting plates. It provides ease of maintenance & replacement and supports for Bus bar system. The 1200V 25A Power Module offered to clients have got a high usage in power generating plants for captive consumption. These products are designed in two or three tier construction with a single and double bush bar system.

Absolute Maximum Ratings Tc=25oC unless otherwise noted

Technical Information 1200V 25A

IGBT- Inverter

Symbol

Description

Value

Unit

Vces

Collector-Emitter Voltage

1200

V

Vges

Gate-emitter Voltage

+20

V

Ic

Collector Current @ TC = 25oC
@TC = 100oC

50
25

A

Icm

Pulsed Collector Current tp = 1ms

50

A

PD

Maximum Power Dissipation @ Tj=175oC

190

W

Diode-Inverter

Symbol

Description

Value

Unit

VRRM

Repetitive Peak Reverse Voltage

1200

V

IF

Diode Continuous forward Current

25

A

IFM

Diode Maximum forward Current tp = 1ms

50

A

Diode rectifier

Symbol

Description

Value

Unit

VRRM

Repetitive Peak Reverse Voltage

1600

V

IO

Average Output Current, 50Hz/60Hz, sine wave

30

A

IFSM

Surge Forward Current VR=0V, tp=10ms, Tj=45oC

360

A

I2t

I2t-value, VR=0V, t p = 10ms, Tj=45oC

640

A2s

IGBT - brake

Symbol

Description

Value

Unit

Vces

Collector-Emitter Voltage

1200

V

Vges

Gate-emitter Voltage

+20

V

Ic

Collector Current @ Tc = 25oC
@Tc = 100oC

25
15

A

Icm

Pulsed Collector Current tp = 1ms

30

A

PD

Maximum Power Dissipation @ Tj=175oC

122

W

Diode Brake

Symbol

Description

Value

Unit

VRRM

Repetitive Peak Reverse Voltage

1200

V

IF

Diode Continuous forward Current

15

A

IFM

Diode Maximum forward Current tp = 1ms

30

A

Module

Symbol

Description

Value

Unit

Tjmax

Maximum Junction Temperature (inverter, Brake)
Maximum Junction Temperature (Rectifier)

150
150

oC

Tjop

Operating Junction Temperature

-40 to + 150

oC

TSTG

Storage Temperature Range

-40 to + 125

oC

VISO

Isolation Voltage RMS,f=50Hz, t=1 min

2500

V

F

Mounting Force Per Clamp

20 to 50

N
