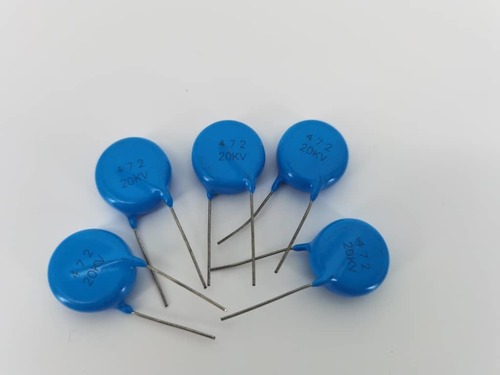

High voltage Ceramic Capacitor

High voltage Ceramic Capacitor

Product Details:

  • Frequency 400-30000 Hertz (HZ)
  • Product Type Ceramic Capacitor
  • Material Ceramic
  • Rated Voltage 10-30KV Volt (V)
  • Capacitance Tolerance 200-200000 Picofarad (pF)
2.00 - 20.00 USD ($)/Piece
X

High voltage Ceramic Capacitor Price And Quantity

  • 10000 Piece
  • 2.00 - 20.00 USD ($)/Piece

High voltage Ceramic Capacitor Product Specifications

  • Ceramic
  • Ceramic Capacitor
  • 400-30000 Hertz (HZ)
  • 10-30KV Volt (V)
  • 200-200000 Picofarad (pF)

High voltage Ceramic Capacitor Trade Information

  • Paypal Telegraphic Transfer (T/T)
  • 20000 Piece Per Month
  • 7-15 Days
  • Asia Australia Central America North America South America Eastern Europe Western Europe Middle East Africa
  • All India

Product Description

In this field we have got an international repute as one of the leading supplier of Ceramic Capacitor. Our diligent procuring agents source the capacitor from the most reputed vendors of the market. We check the capacitors on quality and safety parameters to provide a defect free range to the clients. The clients can obtain our CVD Series Ceramic Capacitor in different sizes, models and specifications as per their requirements. Further, they are known for their features such as light in weight, easy to install and longer working life.

Electrical Parameters :

  • Dielectric constant : 320
  • Working temperature range : 50oC~+125oC
  • Single rated voltage : 12KV AC
  • Single rated Capacity : 15~500 PF
  • Frequency : 50~120Hz

Advantage :

  • No problem hold voltage 50 kV 2 minute, voltage is being guaranteed
  • Designing for lighting impulse 90kV, high security levels.
  • Partial discharge is small, 20kV when partial discharge is less than 3 PCS
  • Temperature range is small, in -40oC ~+70oC change rate is less than 3%

Function applications :

widely used in the ring net switch cabinets, voltage transducer, transformer, circuit breaker, coupler, filter, power energy storage, the voltage divider and double or the protection circuit, static high voltage meter, etc.

Design Concept

According to RTSGC12KV211K (12KV21 OPF) dual chip series capacitor design. The series capacitor detection via professional organization. 50 KV withstand voltage in two minutes, in the 90Kv lighting impulse test, partial discharge test in 15 kv, in 40 to + 70 temperature gradient testing have been excellent results. This series of product according to this standard design. Such products design small size and can meet user at the same time take the function of the signal and the zero sequence. This series of ceramic capacitor mainly focuses on the chip, we can also be processed into voltage divider.

Specifications :

Model Parameter table

Material Code

Capacity

Rated voltage

D (mm)

T (mm)

PCS /STACK

RTS1CVD12KV100P

100PF

12KV

26

14

1

RTS1CVD12KV108P

108PF

12KV

26

14

1

RTS1CVD12KV122P

122PF

12KV

27

14

1

RTS1CVD12KV1180P

180PF

12KV

30

14

1

RTS2CVD24KV122P

122PF

24KV

35

28

2

RTS2CVD24KV210P

210PF

24KV

45

28

2
