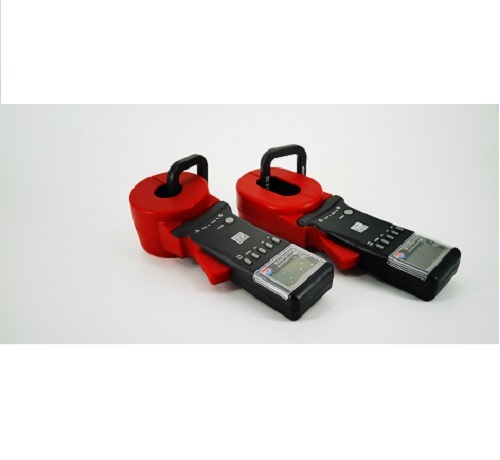

Clamp Earth Resistance Meter
1.00 - 10.00 USD ($)/Piece
Product Details:
X
Clamp Earth Resistance Meter Price And Quantity
- 1.00 - 10.00 USD ($)/Piece
- 10000 Piece
Clamp Earth Resistance Meter Trade Information
- 20000 Piece Per Month
- 7-15 Days
- Asia Australia Central America North America South America Eastern Europe Western Europe Middle East Africa
Product Description
Our organization is looked upon as one of the most esteemed suppliers of RTCR2000 Clamp Earth Resistance Meter. The resistance meter is applicable for various type of tests as well as other equipments. We source the resistance meter from the certified and reliable vendors of the market. To offer a defect free range to the clients we check the RTCR2000 Clamp Earth Resistance Meter on certain quality parameters. They are known for their features such as user friendly, optimum performance, reliable, etc.
Specification :
| Model | RTCR2000+ Clamp Earth Resistance Tester | RTCR2100+ Clamp Earth Resistance Tester | ||
| Clamp Size | 6500 X 32mm | Ф32mm | ||
| Test Size | 285mm X 85mm X 56mm | 260mm X 90mm X 66mm | ||
| Tester Weight | 1160g (With batteries) | 1120g (With batteries) | ||
| Resistance Range | Range | Resolution | Accuracy | |
| 0.010Ω-0.099Ω | 0.001Ω | +(1%+0.01Ω) | ||
| 0.10Ω-0.990Ω | 0.01Ω | +(1%+0.01Ω) | ||
| 1.0Ω-49.9Ω | 0.1Ω | +(1%+0.1Ω) | ||
| 50.0Ω-99.5Ω | 0.5Ω | +(1.5%+0.5Ω) | ||
| 100Ω-199Ω | 1Ω | +(2%+1Ω) | ||
| 200Ω-395Ω | 5Ω | +(5%+5Ω) | ||
| 400-590Ω | 10Ω | +(10%+10Ω) | ||
| 600Ω-880Ω | 20Ω | +(20%+20Ω) | ||
| 900Ω-1200Ω | 30Ω | +(25%+30Ω) | ||
| Power Supply | DC: 6V (4 PCS of LR6 Alkaline batteries) | |||
| Time for single measurement | 0.5 second | |||
| LCD | 4 Digits LCD display | |||
| Data Memory | 99 Sets | |||
| Audible and visible alarm | "du-du-du" for alarming, press AL for on/off | |||
| Alarm Threshold Setting Range | Resistance:1-199Ω | |||
| Protection class | Double insulation | |||
| Shift | Automatically | |||
| External magnet / electric field | <40A/m, ; <1V/m | |||
| Frequency for resistance test | >1KHz | |||
| RS232 Interface | Optical | |||
| Accessories | Meter: 1 piece; Test Ring: 1 Piece, Meter Suitcase: 1 Piece | |||
