Product Description

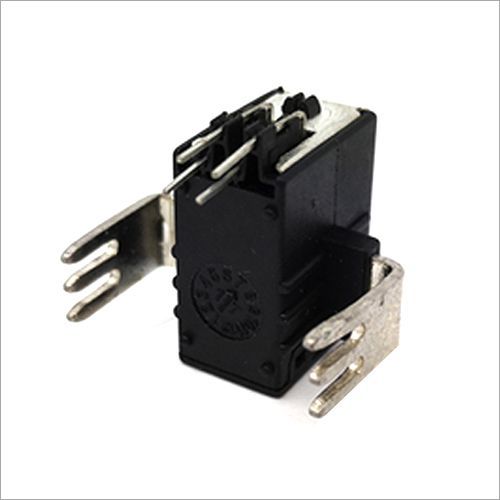

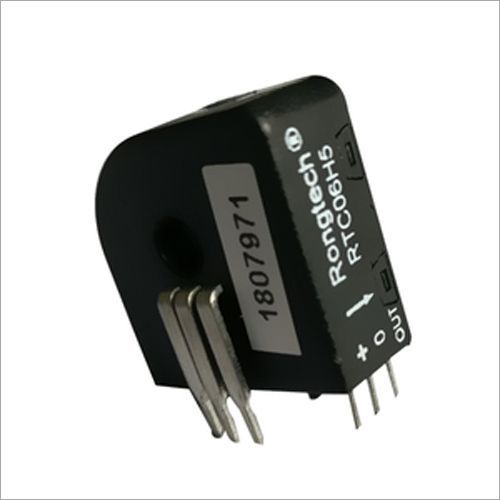

We are efficiently meeting the requirements of numerous customers across the nation by supplying a wide range of RTC100LA2 Series close loop current Sensor. The sensors are made by using high quality components and materials, at the vendor's end. Our sensor is used for online diagnostics and measurement value logging. Available in different sizes and efficiency, our RTC100LA2 sries Hall Effect close loop current Sensors are highly demanded among the clients. Further, they are known for their attributes such as user friendly design, adjustable resolution and easy project planning.


RTC200LA close loop Sensor Specification :

Typed Parameters

RTC100LA2

Unit

Rated input (Ipn)

100

A

Measure range (Ip)

200

±15VŒ20Ω

A

Turns ratio (Np/Ns)

1:1000

T

Coil resister

40.00

Ω

Rated output

100±0.5%

A

Supply voltage

+15+5%

V

Consumption current

20+IpX (Np/Ns)

mA

Offset voltage

@Ip=0 ±0.2

mA

Offset drift

@-40oC ~+85oC <+0.5

mA/oC

Linearity

@Ip=0 +Ipn <0.1

%FS

Response time

@100S,10%-90% 1

uS

Bandwidth (-3dB)

0~10

KHZ

Galvanic Isolation

@50 Hz, AC 1 Min 2.5

KV


Applications :

  • AC variable speed drives and servo motor drives
  • Static converters for DC motor drives
  • Variable speed drives
  • Power supplies for welding applications
  • Battery supplied applications
  • Uninterruptible Power Supplies (UPS)
  • Switched Mode Power Supplies(SMPS)


General Date :


Value

Unit

Symbol

Operating temperature

-40 to +85

oC

TA

Storage temperature

-40 to +125

oC

TS

Mass (Approx)

25

g

M

RTC050H5 Series Multi- Range Closed Loop Mode Hall Effect Current Sensor Specification :

Type Parameters

RTC050H5

Unit

Rated Input (Ipn)

50

A

Measure range (Ip)

180

A

Secondary turns (Ns)

1200+1

T

Internal resister

3.75+ 0.1%

Ω

Rated Output (Ip+Ipn)

+ 0.625+ 0.5%

V

Supply Voltage

+5+ 5%

V

Power consumption

<15+Ip/Ns

mA

Zero Voltage

2.5+ 0.4%

V

Zero Voltage drift

<+ 0.05

mV / oC

Output drift

<+ 0.05

mV / oC

Linearity

<0.1

%FS

Total Precision

<+ 0.7

%

Di/dt accurately followed

>50

A/μS

Response time

<500

nS

Bandwidth

DC~200

KHz

Galvanic Isolation

2.5

KV

Applications :

  • AC variable speed drive
  • Static converters for DC motor drives
  • Battery supplied applications
  • Uninterruptible power supplies (UPS)
  • Switched mode Power Supplies (SMPS)
  • Power supplies for welding applications

General Date :


Value

Unit

Symbol

Operating temperature

-40 to +105

oC

TA

Storage temperature

-40 to +125

oC

TS

Mass (Approx)

10

g

M



RTC50LSR508 Series Closed Loop Mode Hall Effect Current Sensor Specification :

Type Parameters

RTC050H5

Unit

Rated Input (Ipn)

                                               50

A

Measure range (Ip)

                                             +125

A

Turns ratio (Np/Ns)

                                             1:1000

T

Internal resister

                                                4.0

Ω

Rated output

@Ip=+Ipm                         +0.8+ 0.5%

V

Output resistance

                                                <20

Ω

Size of primary pins

                                           6.28 X 1.0

mm

Supply voltage

                                           +5+ 5%

V

Power consumption

                                        <15+Ip/Ns

mA

Reference voltage

                                    +2.5 + 0.5% (Output)

V

Vref internal resist resistor

                                               200

Ω

Vref external range resistor

                                      2.0-2.8 (Input)

V

Zero voltage

@ Ip=0                                       +2.5 + 0.5%

V

Offset drift

@-40~+105oC                                <+0.05

mV / oC

Output drift

@-40~+105oC                                 <+0.05

mV / oC

Linearity

@Ip=0                               -+Ipn <0.1

%FS

Total accuracy

                                              <+1.0

%

Accurately followed

                                               >50

A/μS

Response time

@Ip=Ipn, 50 A/μS, 10%-90%      <1.0

μS

Bandwidth

@ - Idb                                 DC~100

KHZ

Galvanic isolation

@50 Hz, AC, 1 min                 3.0

KV

Application :

  • Variable speed drives
  • Welding machine
  • Battery supplied applications
  • Uninterruptible Power Supplies (UPS)
  • Electrochemical
  • Solar inverters

General Date :


Value

Unit

Symbol

Operating temperature

-40 to +105

oC

TA

Storage temperature

-40 to +125

oC

TS

Mass (Approx)

12

g

M
