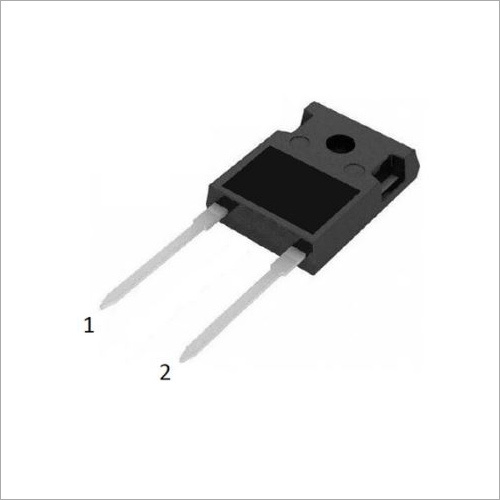

FRD Super Fast Recovery Rectifier

1.00 - 10.00 USD ($)/Piece

Get a Price/Quote

Product Details:

Supply Ability : 20000 Piece Per Month
Click to view more
Share Your Product:

Ask A Question Send Inquiry

Price And Quantity

Minimum Order Quantity 10 Piece
Price Range 1.00 - 10.00 USD ($)/Piece

Trade Information

Supply Ability 20000 Piece Per Month
Delivery Time 7-15 Days

Product Description

We offer a wide range of RFR30F60PN Series FRD Super Fast Recovery Rectifier, which are used for converting alternating current (AC) to direct current (DC). These are also used for anodizing, hydrogenation and many other electro chemical processes. Our range of RFR30F60PN Series FRD Super Fast Recovery Rectifier is used in metal finishing industries and many other industries. Further, they are tested by our quality assurance team to ensure they are free from defects.

Order Information :

Part No.	Package	Marking	Material	Packing
RFR30F60PN	TO-3P	30F60	Pb Free	Tube

Absolute Maximum Ratings :

Characteristics		Symbol	Ratings	Unit
Peak Repetitive Reverse Voltage		V_RRM	600	V
Average Rectified Forward Current	Per Leg	I_F(AV)	15.0	A
Average Rectified Forward Current	Total Device	I_F(AV)	30.0	A
Peak Forward Surge Current @ 8.3 ms		I_FSM	100	A
Operation Junction Temperature Range		T_J	-40~+150	^oC
Storage Temperature Range		Tstg	-40~+150	^oC

Electrical Characteristics :

Characteristics	Symbol	Min.	Typ.	Max.	Unit
Maximum Forward Voltage I_F=15.0 Amps, Tc=25^oC	V_F	-	-	2.6	V
Maximum Instantaneous Reverse Current Rated DC Voltage, Tc=25^oC	I_R	-	-	5.0	µA
Maximum Reverse Recovery Time I_F=0.5Amp, I_R=1.0Amp, I_REC-0.25Amp	Trr	-	-	60	ns
