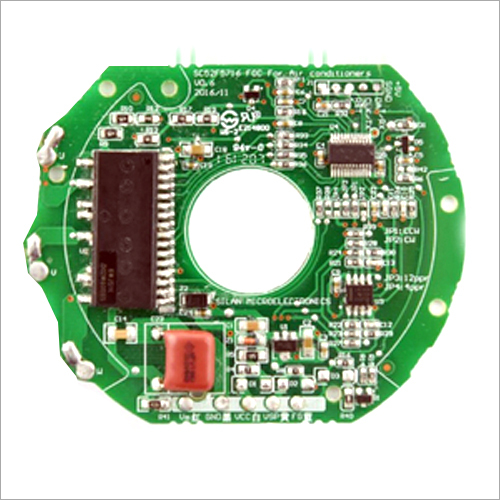

IPM For Fan Application

IPM For Fan Application
IPM For Fan Application
Send Inquiry
Product Code : DIP23
Product Description

We offer high quality IPM For Fan Application which are used to distribute the power through the panels to the different motor loads located at various parts of the factory / system - from one place through the motor starter fitted in the panel of required rating with full protection. We are branded manufacturer enclosures for draw out type and patented panels for MCC and PCC applications. The IPM For Fan Application can be availed from us at lower price.

Features :

  • 3-phase 500V driver
  • RDS (ON) is 1.6Ω in maximum @ID=1.2A, TJ=25oC
  • Built-in 3-phase fast recovery MOSFET
  • 3 separate DC negative ports for current sensing of inverter.
  • High and low side input signal logic interlock
  • Compatible with 3/5V CMOS / TTL interface.
  • Electrical insulation capacity : 1500Vrms/min
  • Package : SOP23H / DIP23H 29X12X3.15 MM


Specification :

Application

P/N

Spec

MOSFET Rdson

BSD

Temperature Out

Power Range

Status

Fan Pump

RD02M50DAE/S
RD02M50DBE/S

2A/500V

4.0Ωmax

15Ω

NTC
/

20-60W

M.P

RD05M50DAE/S
RD05M50DBE/S

5A/500V

1.6Ωmax

15Ω

NTC
/

40-120W

M.P

RD02M60DBE/S

2A/600V

4.0Ωmax

15Ω

/

20-60W

M.P

RDM05M60DBE/S

5A/600V

1.6Ωmax

15Ω

/

40-120W

E.S

RDM06M60DBE/S

7A/600V

0.53Ωmax

15Ω

/

100-200W

E.S
