Power Mosfet

1.00 - 10.00 USD ($)/Piece

Get a Price/Quote

Product Details:

Supply Ability : 20000 Piece Per Month
Click to view more
Share Your Product:

Ask A Question Send Inquiry

X

Price And Quantity

Minimum Order Quantity 10 Piece
Price Range 1.00 - 10.00 USD ($)/Piece

Trade Information

Supply Ability 20000 Piece Per Month
Delivery Time 7-15 Days

Product Description

Features :

47A, 600V, RDS(on)(typ.) = 55mΩ@V_GS=10V
New revolutionary high voltage technology.
Ultra low gate charge
Periodic avalanche rated
Extreme dv/dt rated
High peak current capability

Ordering Information :

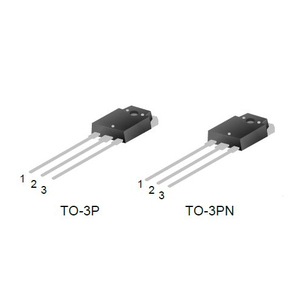

Part No.	Package	Marking	Material	Packing
RVS47N60PN	TO-3P	47N60	Pb free	Tube
RVS47N60PT	TO-3PN	47N60	Pb free	Tube

Absolute Maximum Ratings (Tc=25^oC unless otherwise noted)

Characteristics		Symbol	Ratings	Unit
Drain-Source Voltage		V_DS	600	V
Gate-Source Voltage		V_GS	+30	V
Drain Current	Tc=25^oC	l_D	47	A
Drain Current	Tc=100^oC	l_D	30	A
Drain Current Pulsed		I_DM	140	A
Power Dissipation (Tc=25^oC) -Derate above 25^oC		P_D	415	W
Power Dissipation (Tc=25^oC) -Derate above 25^oC		P_D	3.32	W/^oC
Single Pulsed Avalanche Energy (Note 1)		E_AS	2103	mJ
Operation Junction Temperature Range		T_J	-55~+150	^OC
Storage Temperature Range		Tstg	-55~+150	^OC

Thermal Characteristics :

Characteristics	Symbol	Ratings	Unit
Thermal Resistance, Junction-to-Case	R_θ_JC	0.3	^oC/W
