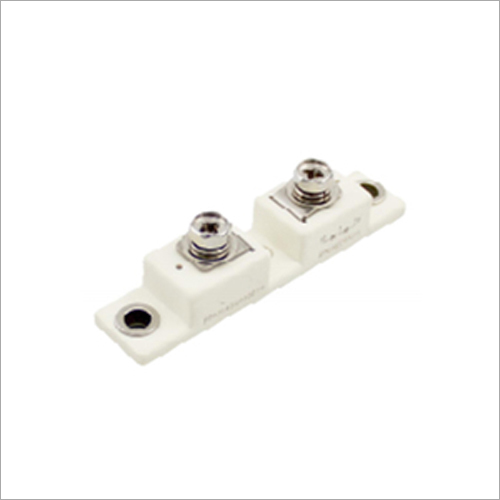

RFM200CC4A2D Series FRD Module

RFM200CC4A2D Series FRD Module
RFM200CC4A2D Series FRD Module
Send Inquiry
Product Code : 01
Product Description

We have established ourselves as a quality focused organization, engaged in supplying a wide range of RFM200CC4A2D Series FRD Module. The modules are sourced by our expert procuring agents from the most reliable vendors of the industry. Available in different size and specifications, our modules are applicable where sequential, parallel & partial muting is required. We offer the RFM200CC4A2D Series FRD Module at the cost effective prices to the clients. These are known for their features such as optimum usability standpoint, operate in ambient temperature and cost effective.

Ordering Information :

Part No.

Package

Marking

Packing

SFM200CC4A2D

A2

SFM200CC4A2D

Carton

Absolute Maximum Ratings (Tc=25o, unless otherwise noted) :

Characteristics

Symbol

Test conditions

Ratings

Units

Maximum D.C. Reverse Voltage

VR


400

V

Maximum Repetitive Reverse Voltage

VRRM


400

V

Continuous Forward Current

IF

Tc=100oC, Per Module

200

A

Repetitive peak Forward Current

IFRM

Tc=100oC, Per Diode

140

A

Surge Forward Current

IFSM

Tj=25oC, t=8.3ms, 50Hz, Sine

1500

A

Tj=25oC, t=10ms, 50Hz, Sine

1400

L2t-value

l2t

Tj=25oC, t=8.3ms, 50Hz, Sine

9338

A2S

Tj=25oC, t=10ms, 50Hz, Sine

9800

Power dissipation

PD


590

W

Operating Junction Temperature range

TJ


-40~+150

oC

Storage Temperature Range

Tstg


-40~+125

oC
