FRED Ultrafast Soft Recovery Diode 30A/1200V

FRED Ultrafast Soft Recovery Diode 30A/1200V

Product Details:

1.00 - 10.00 USD ($)/Piece
X

FRED Ultrafast Soft Recovery Diode 30A/1200V Price And Quantity

  • 1.00 - 10.00 USD ($)/Piece
  • 10000 Piece

FRED Ultrafast Soft Recovery Diode 30A/1200V Trade Information

  • 20000 Piece Per Month
  • 7-15 Days
  • Asia Australia Central America North America South America Eastern Europe Western Europe Middle East Africa

Product Description

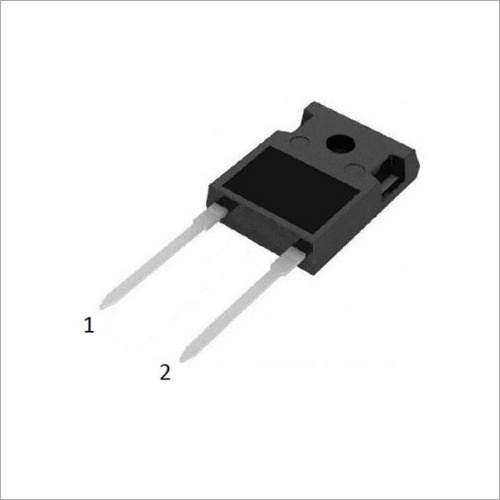

FRED

Ultrafast Soft Recovery Diode, 30A/1200V

Description

This ultrafast soft recovery diode is designed to ensure fewer losses and EMI/RFI majorly in power conditioning systems of high frequency. The diode's soft recovery character provides a buffer in almost all applications. This device is mainly utilized in applications, such as power converters in which switching losses are less than the total losses.

Features:

  •  Ultrafast Recovery
  •  175C operating junction temperature
  •  High surge capacity
  •  Epitaxial chip construction
  •  High frequency operation
  •  Low IR value

Applications:

  • UPS
  • Freewheeling diode, snubber diode
  • Switched mode power supply


Absolute Maximum Ratings

Parameter

Symbol

Test

Values

Units

Repetitive peak reverse voltage

VRRM


1200

V

Continuous

IF(AV)

TC =110C

30

A

Single

IFSM

TC =25C

180

A

Maximum

IFRM

Square , 20kHZ

45

A

Operating

Tj


175

C

Storage

Tstg


-55 to +175

C

Electrical characteristics (Ta=25oC unless otherwise specified)


Parameter

Symbol

Test Conditions

Min

Typ.

Max.

Units

Breakdown voltage

VBR,VR

IR=100A

1200



V

Forward voltage

VF

IF=30 A


2.10

2.70

V

IF=30 A, Tj =125C


1.80

2.40

V

Reverse leakage current (Per Diode)

IR

VR= 1200V



30

A

Tj=150C, VR=1200V



300

A

Reverse recovery time(Per Diode)

trr

IF=0.5A, IR=1A, IRR=0.25A



65

ns

IF=1A,VR=30V, di/dt =200A/us


35

45

ns

Thermal characteristics :

Symbol

Parameter

Typ.

Max.

Units

RJC

Junction-to-Case

-

0.80

oC/W
