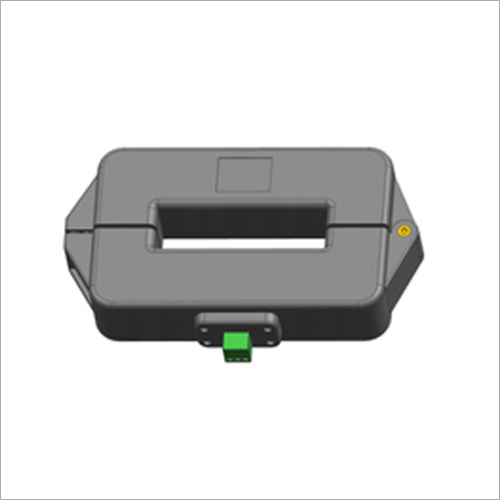

RTCR022KU Microampere Level High Precision Leakage Current Senor

RTCR022KU Microampere Level High Precision Leakage Current Senor
RTCR022KU Microampere Level High Precision Leakage Current Senor
Send Inquiry
Product Code : 01
Product Description

We have reached the pinnacle of success and earned a name as an eminent supplier of RTCR022KU Microampere Level High Precision Leakage Current Senor. Our expert procuring agents source the sensors from the most reliable and certified vendors of the market after conducting several surveys. We can make the sensors available for the clients in different models and specifications as per their requirements. Moreover, we offer the RTCR022KU Microampere Level High Precision Leakage Current Senor at the pocket friendly prices.

Technical specifications :

Model

RTCR080KU

Range (AC)

0.000mA~10A

Resolution (AC)

1μA

Accuracy

+1.0%FS

Phase Error

<2o

Turn Ratio

1:1000

Reference Load

0~1000mA<300Ω;0~10A<30Ω

Split Size

80mmx21mm

Dimension

165mm X 88mm X 34mm

Weight

220g

Output Method

Current sense output

Output Interface

3P plugging terminal 3.5mm

Line Voltage

Below AC 600V

Working temperature & Humidity

-20oC ~oC; Below 80% rh

Accessories

Sensor ; 1 pieces; 3P terminal; 1 pieces
