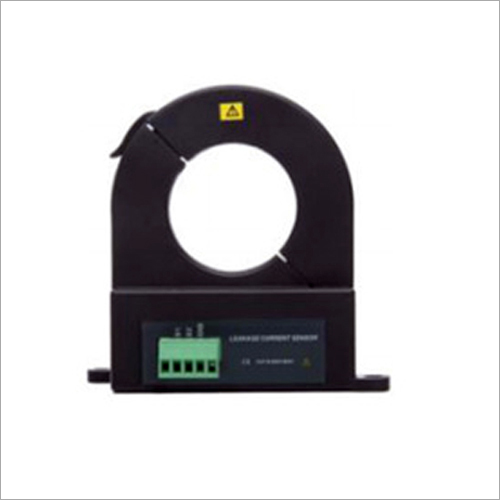

RTCR080K Split Type High Accuracy Leakage Current Sensor

RTCR080K Split Type High Accuracy Leakage Current Sensor
RTCR080K Split Type High Accuracy Leakage Current Sensor
Send Inquiry
Product Code : 02
Product Description

With a wealth of experience and leading market know how, we have established an enviable position of one of the leading suppliers of RTCR080K Split Type High Accuracy Leakage Current Sensor. The current sensor finds application in electronic power, textile, printing & dyeing, medical and food industries. We source the scanner from the most reliable and certified vendors of the market. Before offering at the cost effective prices, we check the RTCR080K Split Type High Accuracy Leakage Current Sensor on performance and quality parameters.

Technical specifications :

Model

RTCR080K

Range (AC)

0.000mA~60A

Resolution (AC)

0.01mA

Accuracy

+1.0%FS

Phase Error

<2o

Turn Ratio

1:800

Reference Load

RL : 0~300mA<300Ω; 0~3A<30Ω; 0~30A<3Ω; 0~300A<0.3Ω

Split Size

Ф80mm

Dimension

135mm X 153mm X 40mm

Weight

490g

Output Mode

Current induction output, can be external load resistance (RL) to take the voltage

Output Interface

Output by the lead wire or connection terminal (S1,S2 Coil tap end, GND Shield end)

Accessories

Sensor; 1 pcs
