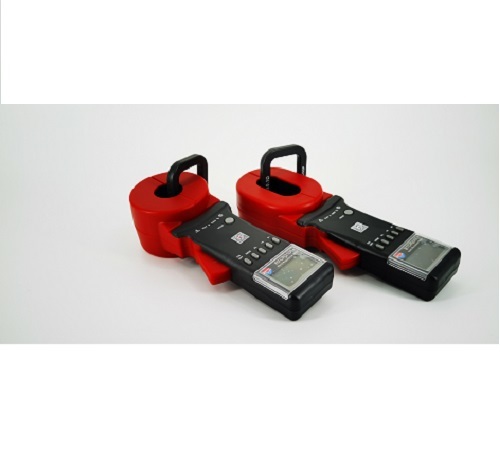

RTCR2000 Clamp Earth Resistance Meter

RTCR2000 Clamp Earth Resistance Meter
RTCR2000 Clamp Earth Resistance Meter
Send Inquiry
Product Code : 01
Product Description

Our organization is looked upon as one of the most esteemed suppliers of RTCR2000 Clamp Earth Resistance Meter. The resistance meter is applicable for various type of tests as well as other equipments. We source the resistance meter from the certified and reliable vendors of the market. To offer a defect free range to the clients we check the RTCR2000 Clamp Earth Resistance Meter on certain quality parameters. They are known for their features such as user friendly, optimum performance, reliable, etc.

Specification :

Model

RTCR2000+ Clamp Earth Resistance Tester

RTCR2100+ Clamp Earth Resistance Tester

Clamp Size

6500 X 32mm

Ф32mm

Test Size

285mm X 85mm X 56mm

260mm X 90mm X 66mm

Tester Weight

1160g (With batteries)

1120g (With batteries)

Resistance Range

Range

Resolution

Accuracy

0.010Ω-0.099Ω

0.001Ω

+(1%+0.01Ω)

0.10Ω-0.990Ω

0.01Ω

+(1%+0.01Ω)

1.0Ω-49.9Ω

0.1Ω

+(1%+0.1Ω)

50.0Ω-99.5Ω

0.5Ω

+(1.5%+0.5Ω)

100Ω-199Ω

1Ω

+(2%+1Ω)

200Ω-395Ω

5Ω

+(5%+5Ω)

400-590Ω

10Ω

+(10%+10Ω)

600Ω-880Ω

20Ω

+(20%+20Ω)

900Ω-1200Ω

30Ω

+(25%+30Ω)

Power Supply

DC: 6V (4 PCS of LR6 Alkaline batteries)

Time for single measurement

0.5 second

LCD

4 Digits LCD display
Screen L x W:47mm X 28.5mm

Data Memory

99 Sets

Audible and visible alarm

"du-du-du" for alarming, press AL for on/off

Alarm Threshold Setting Range

Resistance:1-199Ω

Protection class

Double insulation

Shift

Automatically

External magnet / electric field

<40A/m, ; <1V/m

Frequency for resistance test

>1KHz

RS232 Interface

Optical

Accessories

Meter: 1 piece; Test Ring: 1 Piece, Meter Suitcase: 1 Piece


RONGTECH INDUSTRY (SHANGHAI) INC.
