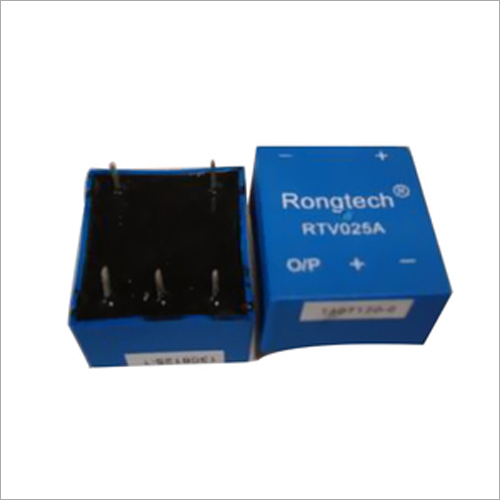

RTV025A Series Hall Effect Voltage Sensor

RTV025A Series Hall Effect Voltage Sensor
RTV025A Series Hall Effect Voltage Sensor
Send Inquiry
Product Code : 01
Product Description

The RTV025A Series Hall Effect Voltage Sensor is a piece of electro-sensitive protective equipment with integrated adapter, which enables this device to be safely coupled with other electronic equipments. The diagnostics are enabled with the direct access via on-site voltage sensing. The protective field contours and all other parameters can be easily generated. The RTV025A Series Hall Effect Voltage Sensors are available in various size and specifications and can be from us at lower price.

Specifications :

Type Parameter

RTV5/25A

RTV10/25A

Unit

Rated Input (Ipn)

5

10

mA

Measure range (Ip)

7

14

mA

Turns ratio (Np/Ns)

5000 : 1000

2500 : 1000

T

Primary Coil resister

650

200

Ω

Secondary coil resister

110

110

Ω

Measure resister

+15                 @ (+5)+10mAmax     100(min)  350 (Max)
                        @ (+5)+10mAmax     100(min)  190 (Max)

Ω

Rated output (Isn)

@Ip = +Ipn                        +25 + 0.5%

mA

Supply voltage

                                             +15+5%

V

Power consumption

                                          20+IpX (Np/Ns)

mA

Zero offset current

@Ip = 0                                  +0.2

mA

Offset current drift

@ - 40oC ~+85oC                            +0.5

mA

Response time

                                                 40

μS

Linearity

@Ip=0-+Ipn                           <0.2

%FS

Galvanic isolation

@50HZ, AC, 1 min                  2.5

KV

Applications :

  • AC variable speed drives and servo motor drives
  • Ariable speed drives
  • Battery supplied applications
  • Switch Mode Power Supplies (SMPS)
  • Static converters for DC motor drives
  • Power supplies for welding applications
  • Uninterruptible Power supplies (UPS)

General Date :


Value

Unit

Symbol

Operating temperature

-40 to +85

oC

TA

Storage temperature

-40 to +125

oC

TS

Mass (Approx)

20

g

M
