Product Code : RVS47N60PN cool-Mosfet 6
Product Description

Features :

  • 47A, 600V, RDS(on)(typ.) = 55mΩ@VGS =10V
  • New revolutionary high voltage technology.
  • Ultra low gate charge
  • Periodic avalanche rated
  • Extreme dv/dt rated
  • High peak current capability

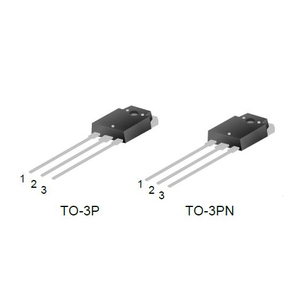

Ordering Information :

Part No.

Package

Marking

Material

Packing

RVS47N60PN

TO-3P

47N60

Pb free

Tube

RVS47N60PT

TO-3PN

47N60

Pb free

Tube

Absolute Maximum Ratings (Tc=25oC unless otherwise noted)

Characteristics

Symbol

Ratings

Unit

Drain-Source Voltage

VDS

600

V

Gate-Source Voltage

VGS

+30

V

Drain Current

Tc=25oC

lD

47

A

Tc=100oC

30

Drain Current Pulsed

IDM

140

A

Power Dissipation (Tc=25oC)
-Derate above 25oC

PD

415

W

3.32

W/oC

Single Pulsed Avalanche Energy (Note 1)

EAS

2103

mJ

Operation Junction Temperature Range

TJ

-55~+150

OC

Storage Temperature Range

Tstg

-55~+150

OC

Thermal Characteristics :

Characteristics

Symbol

Ratings

Unit

Thermal Resistance, Junction-to-Case

RθJC

0.3

oC/W
