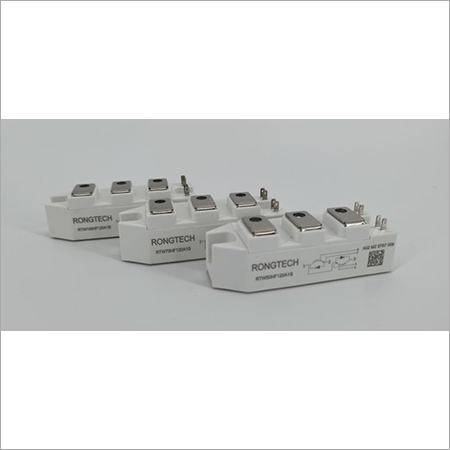

IGBT Module

1.00 - 10.00 USD ($)/Piece

Get a Price/Quote

Product Details:

Click to View more
Share Your Product:

Request to Call Back Send Inquiry

IGBT Module Price And Quantity

Price Range 1.00 - 10.00 USD ($)/Piece
Minimum Order Quantity 10000 Piece

IGBT Module Trade Information

Supply Ability 20000 Piece Per Month
Delivery Time 7-15 Days
Main Export Market(s) Asia Australia Central America North America South America Eastern Europe Western Europe Middle East Africa

Product Description

Being a highly praised firm in this domain, we have been involved in providing a broad range of IGBT Module. Our qualified professionals make use optimal quality raw material with the help of latest techniques to manufacture these modules in accordance with set industry norms. Especially designed to turn on and off, offered modules are highly demanded in medium to high power electrical appliances such as converters, inverters, traction motor control, etc. In addition to this, our clients can get this IGBT Module from us in different specifications and at pocket friendly rates.

Electrical Characteristics of IGBT at TJ = 25^oC (Unless Otherwise Specified)

Parameter		Test Conditions	Min	Type	Max	Unit
BV_CES	Collector to Emitter Breakdown Voltage	V_GE = +V, I_C = 1mA	1200			V

Absolute Maximum Ratings of IGBT

VCES	Collector to Emitter Voltage	1200	V
VGES	Continuous Gate to Emitter Voltage	±30	V
IC	Continuous Collector Current			TC = 25°C	200	A
				TC = 100°C	100
ICM	Pulse Collector Current			TJ = 150°C	200	A
PD	Maximum Power Dissipation (IGBT)			TC = 25°C, TJ = 150°C	430	W
tsc	Short Circuit Withstand Time	> 10	µs
TJ	Maximum IGBT Junction Temperature	150	°C
TJOP	Maximum Operating Junction Temperature Range	-40 to +150	°C
Tstg	Storage Temperature Range	-40 to +125	°C
